CAP06 (S) – Compact one-piece rotary capping machine

Structure and safety

• Main structure of the monoblock made of anodised aluminium profiles, completely covered with stainless steel panels.
• Inlet and outlet belt with single drive: adjustable stainless steel and polyethylene guides, standard length 3 m (different on request with possibility of 90° inlet/outlet configuration).

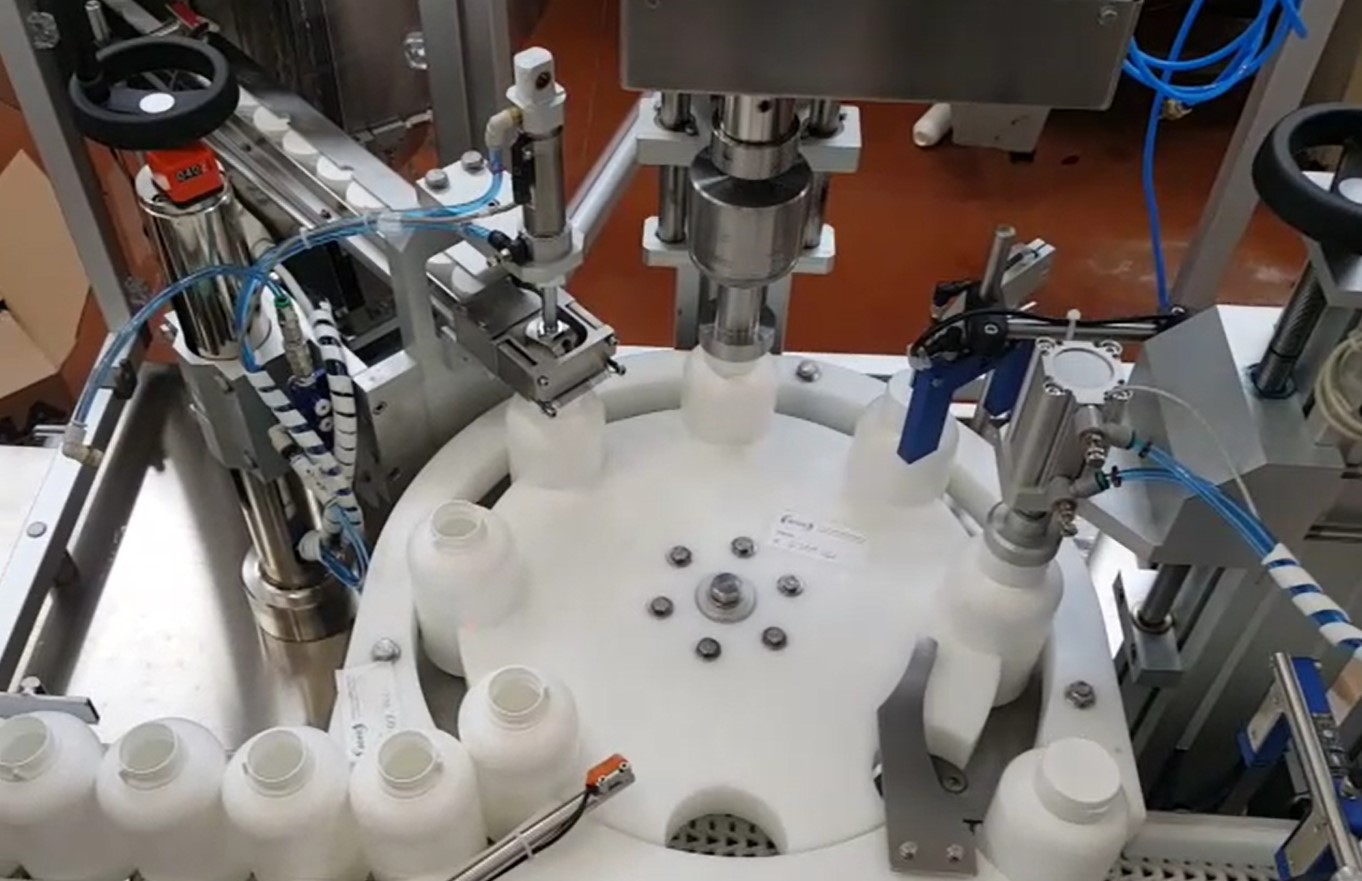

• Bottle transport carousel made of high-density polyethylene. Bottle sizes up to Ø 85 mm, H 240 mm. OTHER FORMATS ACCORDING TO REQUEST TO BE EVALUATED

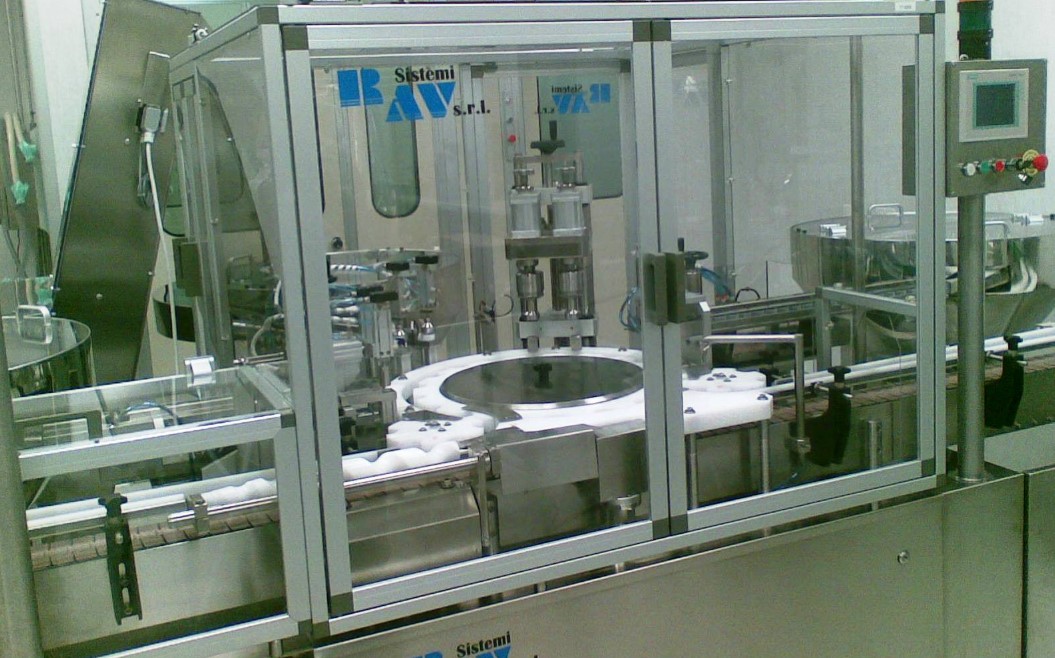

• Safety enclosure in anodised aluminium profile and tempered glass or polycarbonate with mechanical limit switches
• On-board electrical and control cabinet, stainless steel

Capping system

• Cap feeder with stainless steel vibrating cup, Ø600 mm, with soundproofing and adjustable pedestal
• Linear adduction guide and mechanical or electropneumatic cap positioning unit

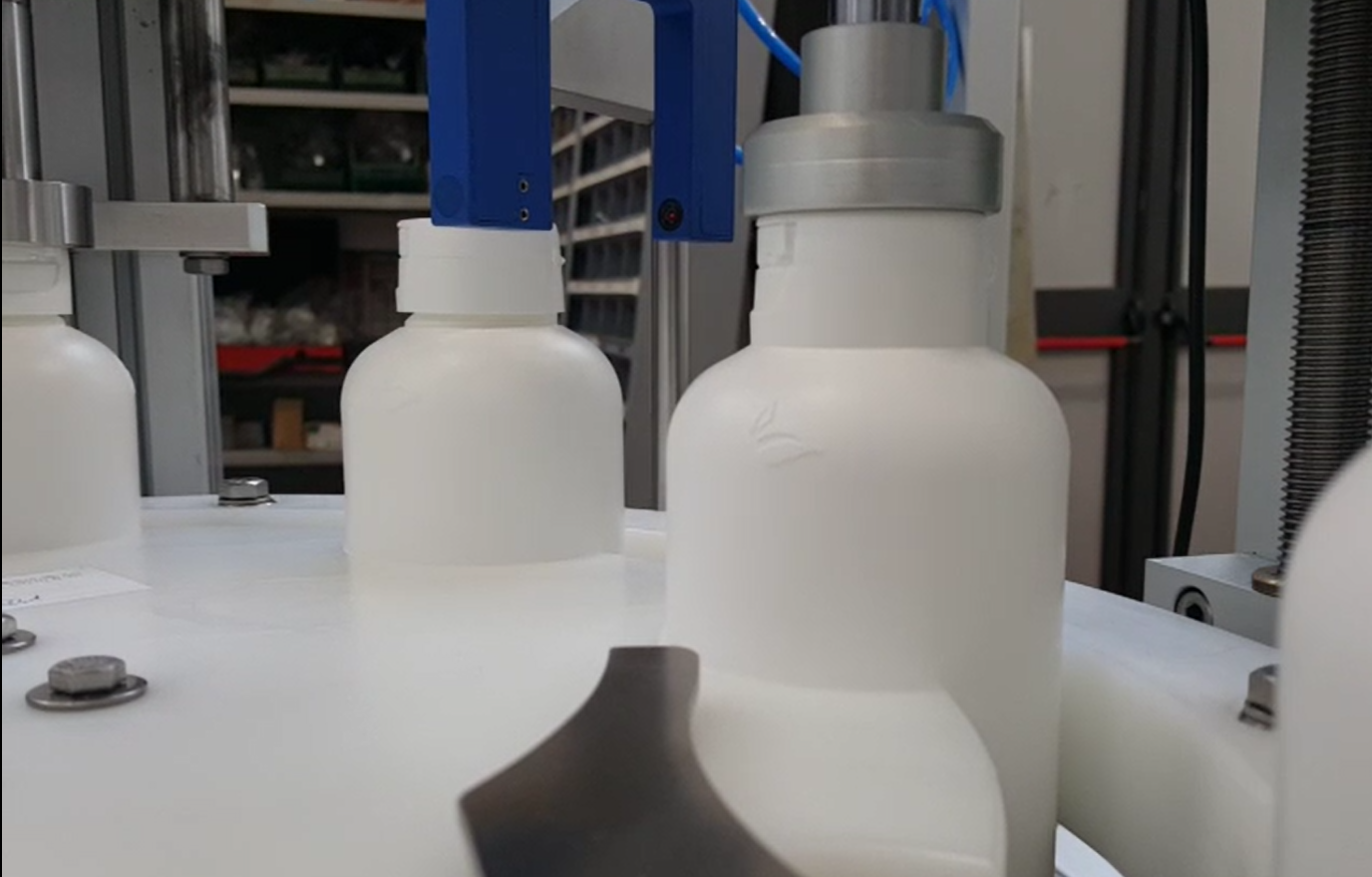

• Closing unit for aluminium or plastic caps with adjustable rotation speed and magnetic clutch for closing torque calibration.

(OPT.) In “S” version:

• Over/under feeder with stainless steel vibratory bowl and double-lane linear guide, with soundproofing option and adjustable pedestal
• Double mechanical or electropneumatic over/under positioning unit

Logic Controls

• Siemens S7 CPU 1200 PLC-based logic control
• Operator interface via Siemens Simatic Touch-Screen panel with alarm list, setup functions and parameter editing.

Controls and Alarms

• Minimum and maximum bottle load on the belt (stand by)
• Minimum cap load in supply (stand by)
• Bottle presence check at capping station (no capping)
• Cap application check (stop)
