General features
- Stainless steel bottle feeding elevator, volume approx. 350 litres with level probe and automatic start/stop for bottle feeding to the uncapping device.

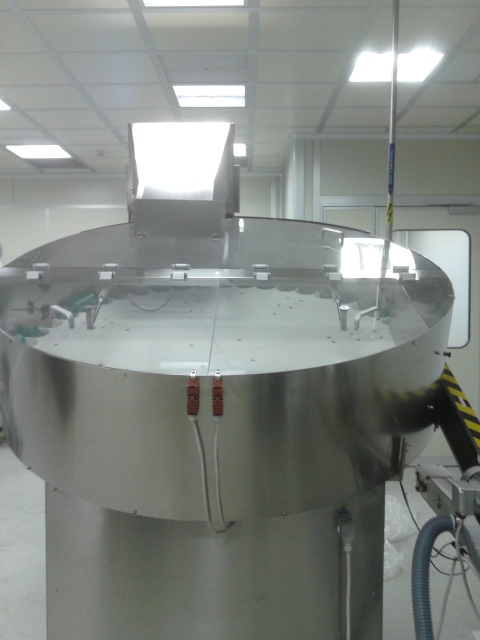

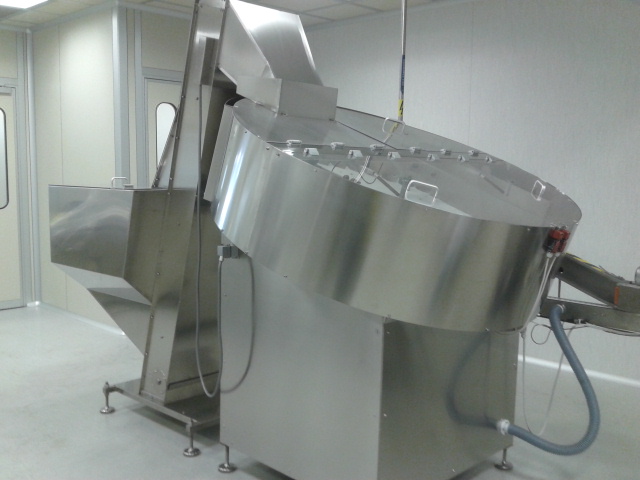

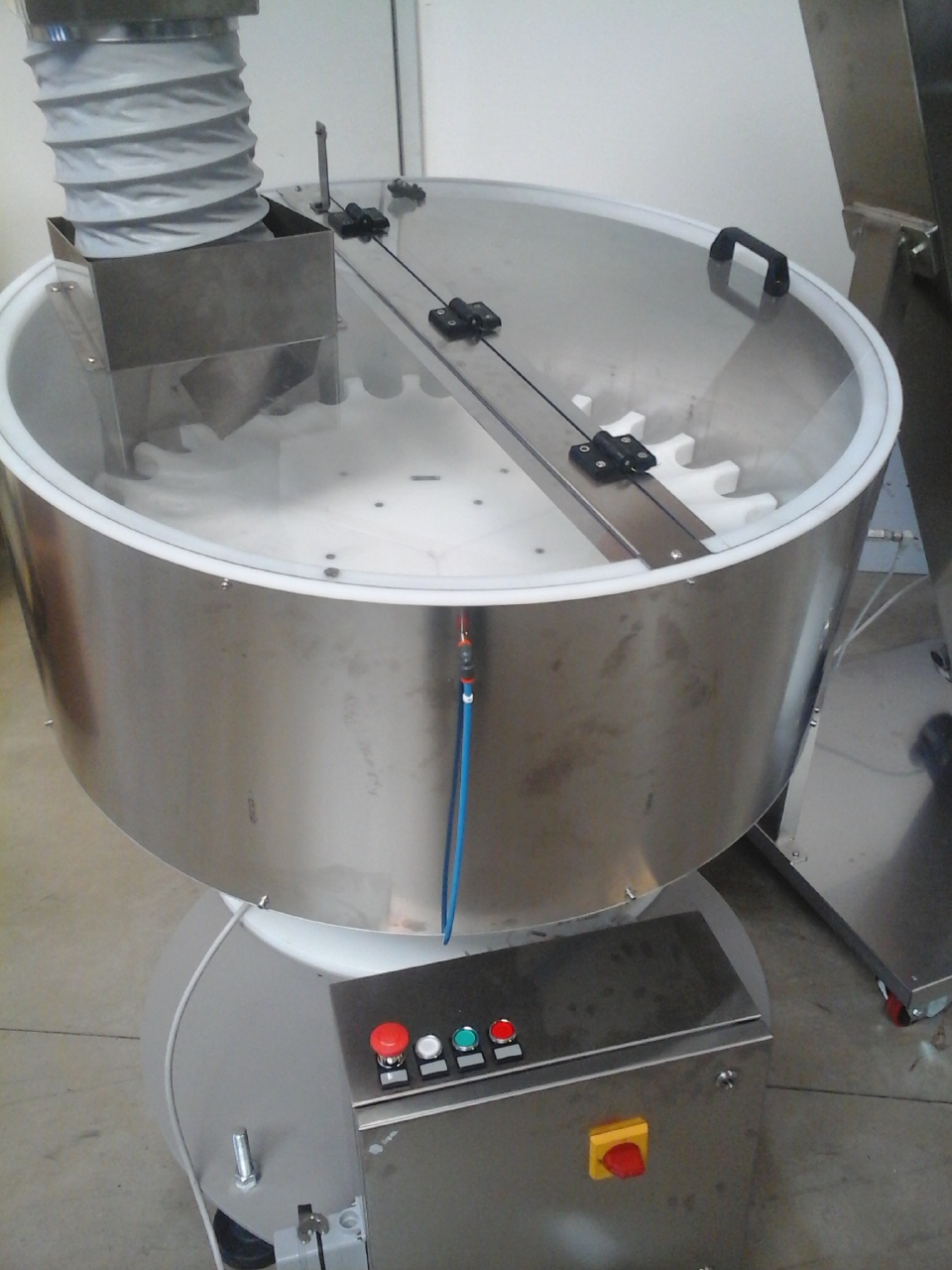

- Stainless steel mechanical unscrambler with interchangeable parts for different HDPE formats (different diameters from 800 to 1500 mm depending on bottle diameter available).
- Stainless steel conveyor belt with adjustable guides, length approx. 800 mm.
- Possibility of replacing the normal conveyor belt with a suction conveyor to keep the bottles upright after exiting the breaker.
- Complete set of parts for different bottle sizes
- Control panel with Siemens LOGO miniPLC with indicator lights and start/stop button
- Production speed: 40÷200 bottles/min (depending on bottle size)
Data Sheet
| Versions | 800-2000 |
| Nominal productivity (pcs/h) | 12000 |
| Format (max size) | Ø 80-120 mm, H 240 mm |
| Electrical system | 220V + GND |
| Sensors | OMRON or Telemecanique |
| Safety protections | Sensors with NC contact |
| Connection load | 1-3 Kw |
| Weight (kg) | 400 |
| Dimensions (cm) | Ø 80-120, H 240 |
